Primitive Cylinder

Status: Implemented

Primitive Cylinder creates a right cylinder aligned to the +Y axis.

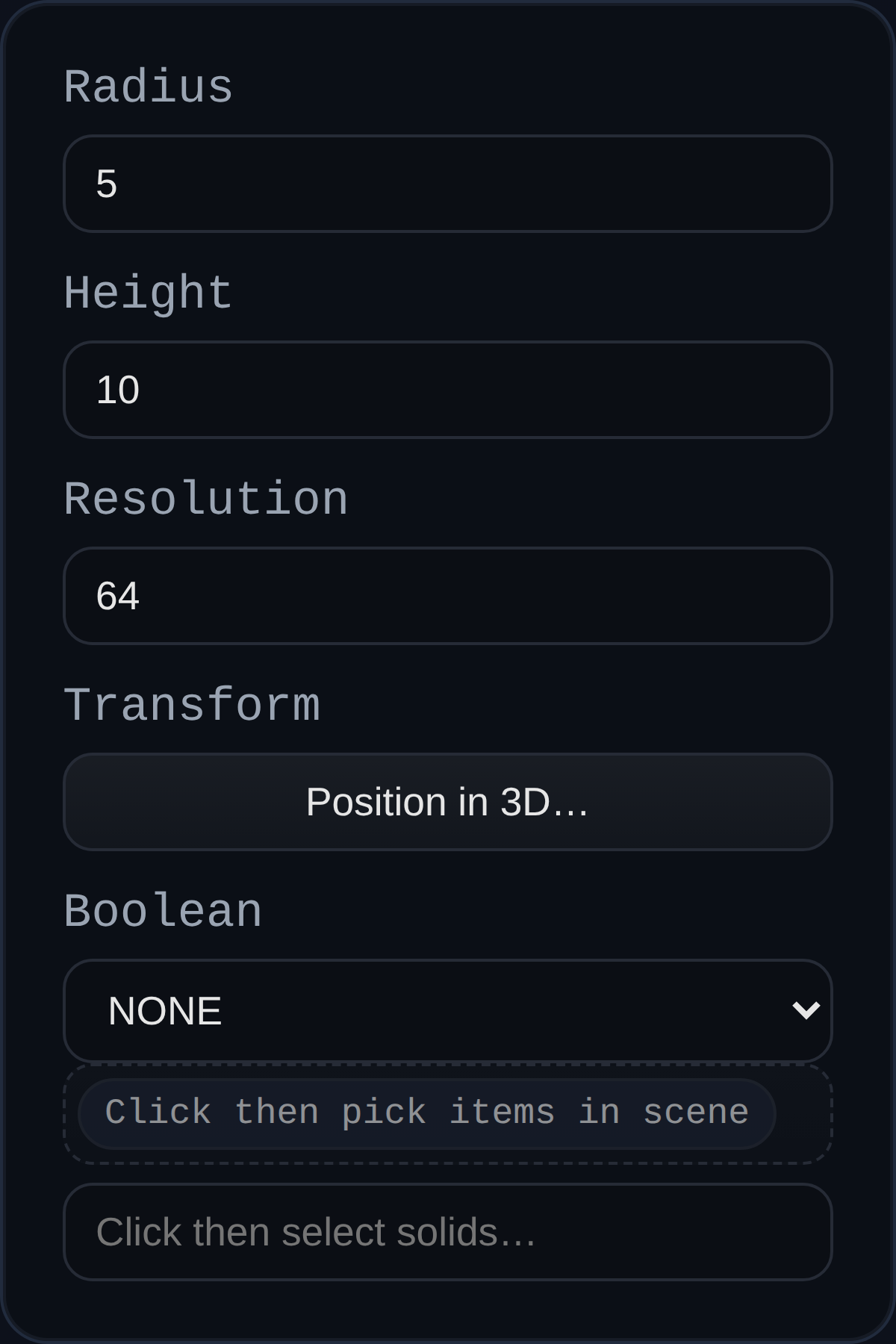

Inputs

• radius – cylinder radius.
• height – distance along +Y.
• resolution – number of circular segments.
• transform – optional translation/rotation/scale baked into the solid.
• boolean – optional union/subtract/intersect applied after creation.

Behaviour

• A centerline is recorded along the local axis so downstream constraints can re-use it.
• The base of the cylinder starts at the origin; relocate it with the transform or a later Transform feature.
