Plane

Status: Implemented

Plane creates a square construction mesh that can be used as a sketch or measurement reference.

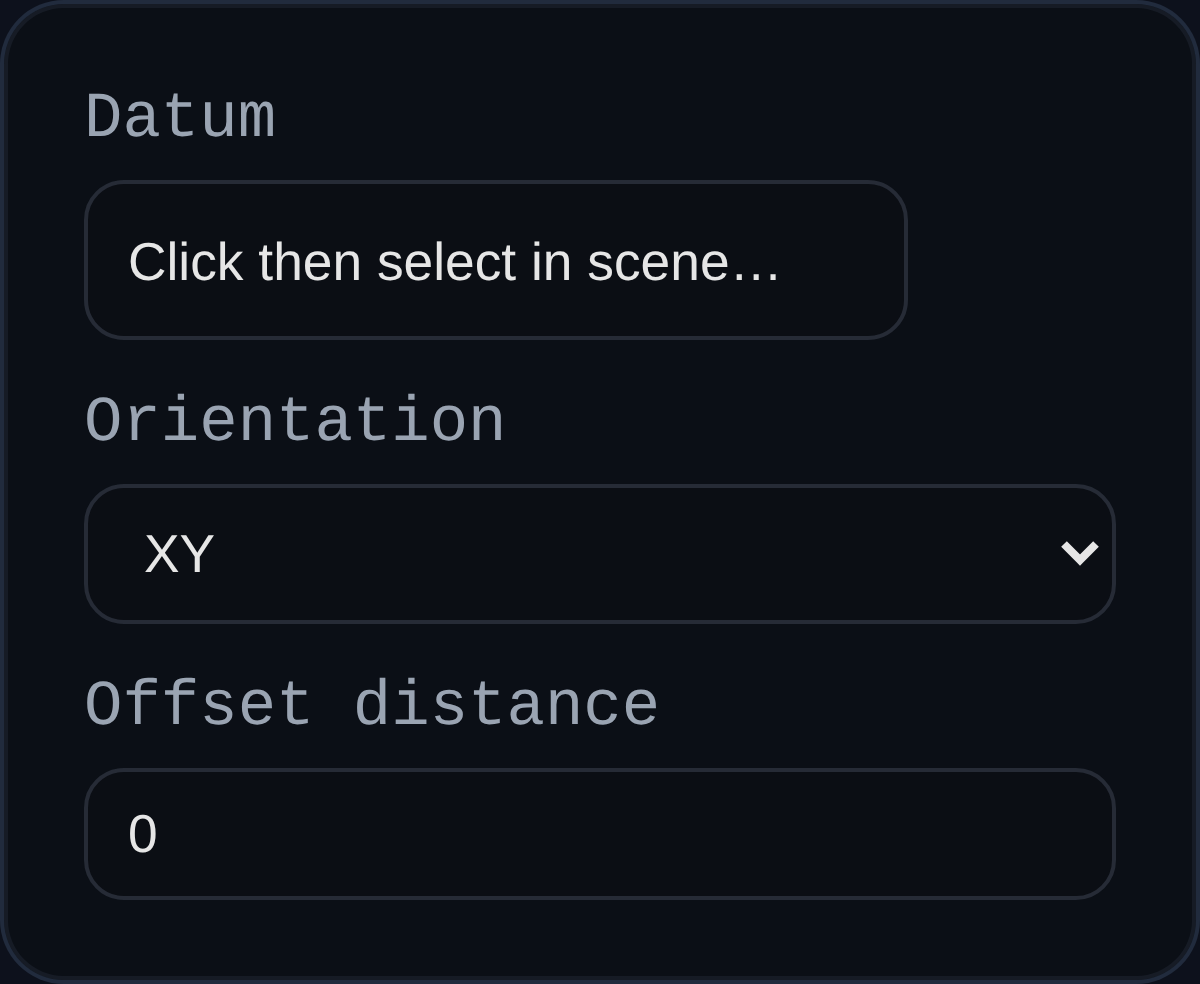

Inputs

• orientation – choose one of the world-aligned bases (XY, XZ, YZ).
• datum – reserved for future datum-based placement (currently ignored).
• offset_distance – reserved; the current implementation does not shift the plane.

Behaviour

• A 5×5 mesh is emitted with the selected orientation. The feature ID is assigned to the mesh name and UUID so other features can reference it through PLANE selection filters.
• Use downstream transform features if you need the plane positioned away from the origin; offsetting directly inside the feature is not yet supported.
