Boolean

Status: Implemented

Boolean combines existing solids by running Manifold CSG through BREP.applyBooleanOperation. The feature keeps face labels intact so downstream selections survive.

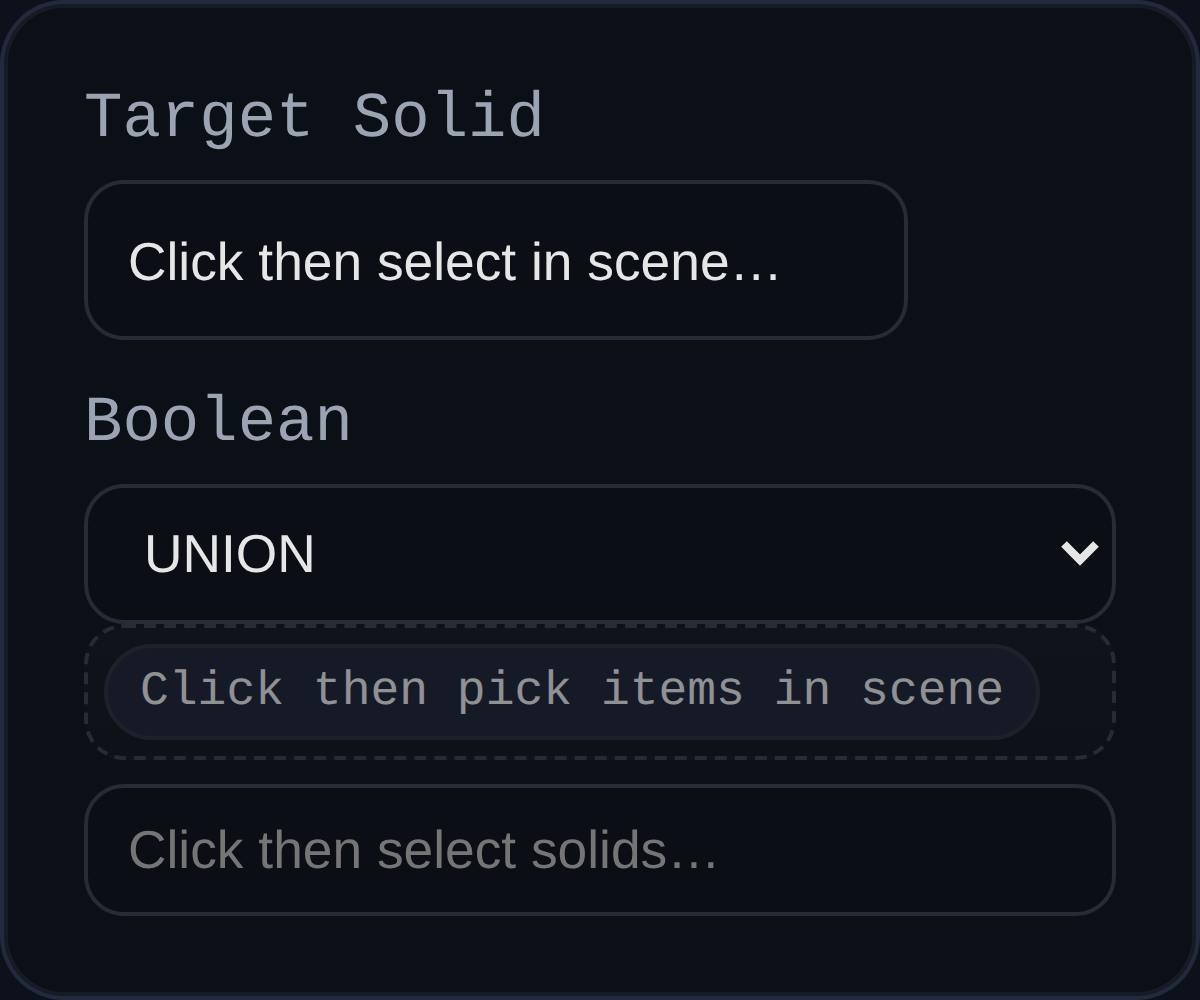

Inputs

• targetSolid – the solid that supplies the base body for UNION/INTERSECT operations.
• boolean.targets – additional solids to use as tools. Duplicate entries are ignored.
• boolean.operation – UNION, SUBTRACT, or INTERSECT. NONE leaves the scene unchanged.

- boolean.simplify – optional. If true, simplifies the boolean result using a tolerance (see below). If a number, it is treated as the tolerance directly. If omitted, a global default may apply. - boolean.simplifyTolerance – optional numeric tolerance to use when simplifying. Takes precedence when provided.

Behaviour

• UNION and INTERSECT treat the target as the base body and remove the original target from the scene once the new solid is created.
• SUBTRACT unions all tool solids first, then removes that volume from the target so complex multi-tool cuts stay watertight.
• Each tool and the original target solid is flagged for removal after the operation; only the new solids returned by the kernel remain in the timeline.

When simplification is enabled, the output solid(s) are passed through Solid.simplify(tol). By default, a small global tolerance is used if configured internally; you can override per-feature via boolean.simplify/boolean.simplifyTolerance.
