Assembly Component

Status: Implemented

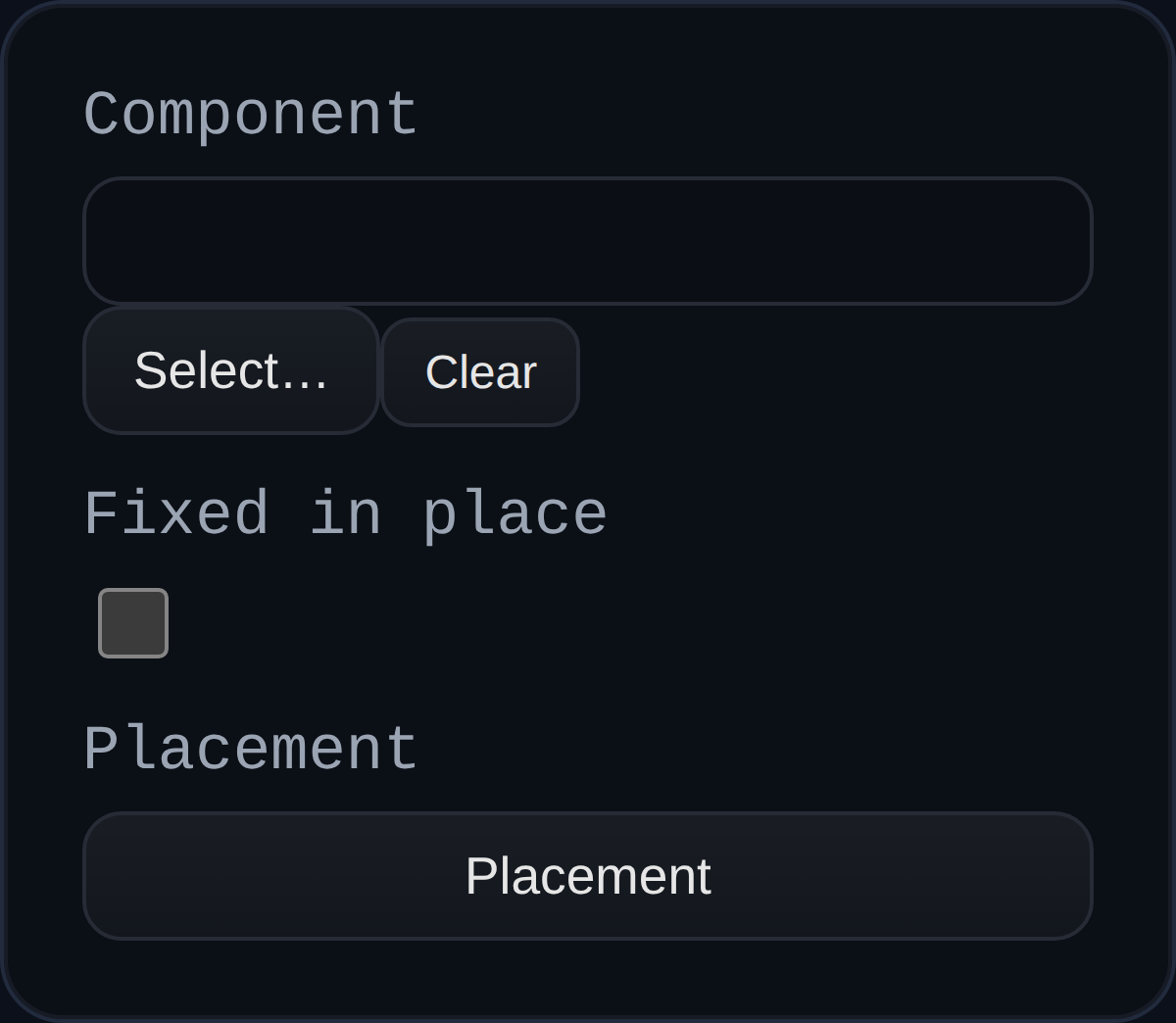

Assembly Component inserts a saved 3MF component into the current assembly, optionally fixing it in place and positioning it with a transform gizmo.

Inputs

• componentName – Pick a saved component from the library (3MF payload with optional embedded feature history).
• isFixed – Lock the component so assembly constraints treat it as immobile.
• transform – Placement transform (position/rotation/scale) applied to the inserted component bodies.

Behaviour

• Loads the selected 3MF, rebuilds solids from meshes (or from embedded feature history when present), and groups them under a single assembly component node.
• Applies the feature ID prefix to body/face names for stable selections, then visualizes the inserted bodies.
• Persists the component payload in persistentData so reruns do not depend on local storage or library lookups.
